SPEC NO: DSAD0912 REV NO: V.10A DATE: MAR/04/2013 PAGE: 4 OF 5
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.Liu ERP: 1203001433
APHHS1005SECK

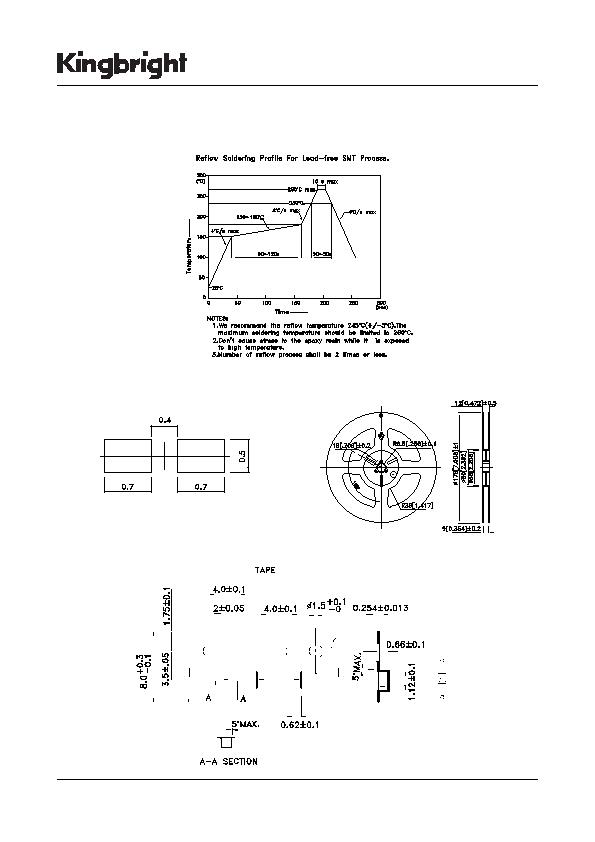

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units : mm; Tolerance: ?0.1)
Reel Dimension
Tape Dimensions
(Units : mm)
